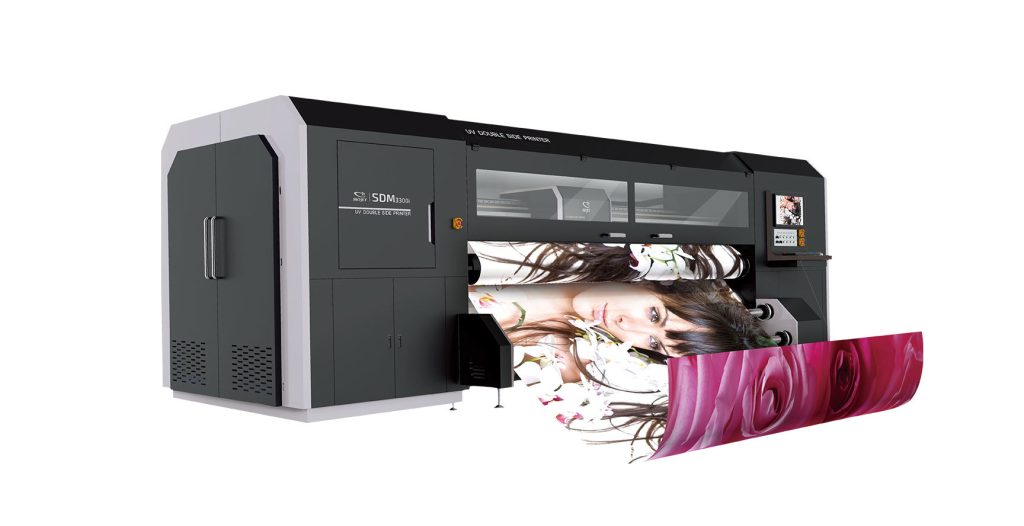

SDM3300i

Interpretation of Equipment Advantages

● Patent structure: S-shaped fabric structure+flat printing method, ensuring 100% alignment accuracy of the front and back images.
● Tension control: The tension control system keeps the material under constant tension during the weaving process, and different materials correspond to different tension parameters.
● Constant temperature platform: High precision constant temperature adsorption platform and cold and hot control system ensure clearer 4-pound characters when printing at a speed of 1.9 meters per second.
● Suspended platform: The adjustable suspended platform enables double-sided and single-sided printing of mesh fabric.
● Nozzle adjustment: By using a bidirectionally adjustable nozzle mounting base and a four point positioning adjustable nozzle mounting plate, the parallelism accuracy between the multi nozzle matrix and the printing surface is ensured.
● Intelligent adsorption: The platform adsorption uses a frequency converter, which can accurately adjust the adsorption force and is suitable for different printing modes.
● Auxiliary laying: The humanized auxiliary laying device improves the efficiency of replacing double-sided printing media.
● White Ink Cleaning: The automatic cleaning function of the white ink path prevents ink sedimentation and blockage when the white nozzle is not in use.
● Print monitoring: Configure a camera system to display the printed image of the back car on the front display for easy printing monitoring.
● Curing system: UV curing system or LED curing system are optional.
● Original computer: Equipped with original Dell industrial grade computer to ensure control stability.
● Standard accessories: Fully imported high-end standard parts ensure the stability of equipment operation. Including: Mitsubishi servo motors and PLC controllers, Newcastle reducers, high-speed silent linear guides, Renishaw metal grating rulers, Eges high-speed silent drag chains and data cables, SMC solenoid valves and pneumatic components, KNF negative pressure pumps and ink pumps, Japanese ROKI filters, etc.

Interpretation of Control Advantages

● Nozzle configuration: 2/3/4 rows KM1024i nozzle configuration, with a maximum installation capacity of 32 nozzles.
● Color management: CALDERA GrandRip advanced color management software from France.
● Alignment adjustment: The dual spray alignment parameters can be adjusted in real-time before and during printing.
● Light blocking printing: Different contents are printed on both sides, and the back achieves light blocking printing effect.
● Multi layer printing: Multi layer printing functions such as A+W+B and A+W+K+W+B can print different patterns on both sides of transparent materials.
● Image merging: RIP images can be stitched and formatted within printing software without the need for repetitive processing.
● Parameter saving: Select materials of different properties in the printing software, and the software will automatically call the printing parameters in the current medium.
● Curing control: After 30 minutes of standby, the curing light will automatically turn off to save energy consumption; Automatically detect the curing lamp status before printing to avoid misoperation.
● White ink circulation: Adopting an automatic control circulation system to avoid white ink sedimentation caused by prolonged inactivity.
● Ink Bucket Weighing: Monitor the weight of the ink bucket and automatically sound an alarm to prompt for ink replacement when it is below the safe ink level.
● Spare parts monitoring: Record the usage time of UV lamps and ink pumps, providing reference for timely replacement of vulnerable spare parts.
● Print statistics: The print log function automatically records and counts print business, facilitating job management.
Ink Quantity Statistics: Display ink usage, track ink consumption, and calculate printing costs.
