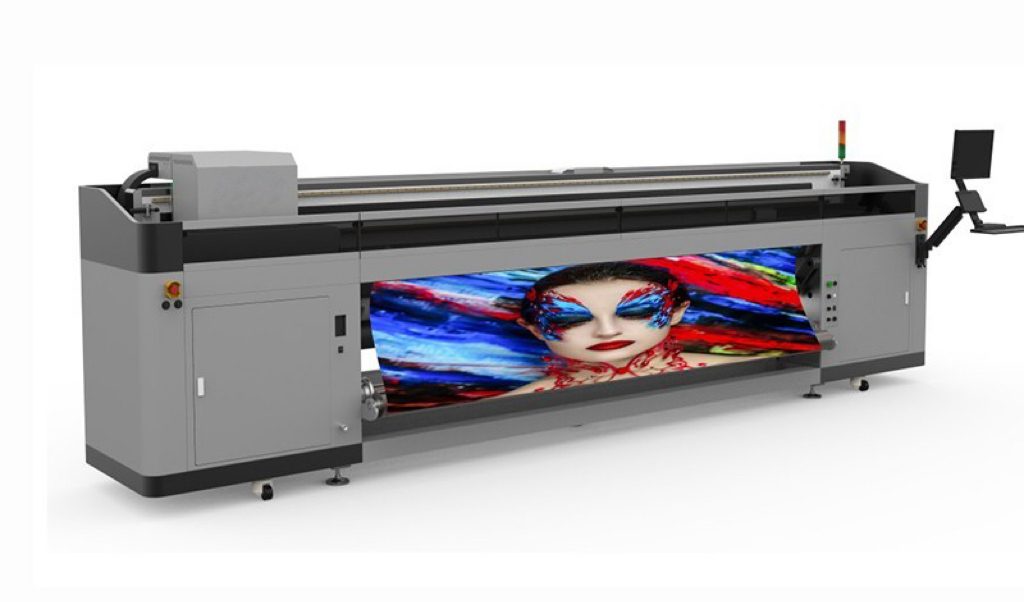

AMO-3300S
AMO wide format roll-to-roll UV printer
Dynamic curing LED UV lamp sytem
Grayscale printhead variable ink drop size 6-18pl,4-level grayscale printing
Supporting slitter system to slit prints while printing
Applying linear motor
3-layer spot color printing, CWC, WCV modes supported
Advanced feed-in and take-up system to support accurate printing
| Pinthead | Piezoelectric inkjet printhead 6pl, Grayscale Technology | ||
| Inkjet speed | Two-row head | Three-row head | |
| Express mode | / | 140㎡/h | |
| Production mode | / | 92 ㎡/h | |
| Quality mode | / | 70㎡/h | |
| Resolution | 540*720, 540*1080, 726*720, 726*1080, 726*1440 | ||
| Inkjet technology | On demand piezoelectricity inkjet mode, support gray level printing | ||
| Ink type | LED UV ink environment friendly, excellent colors, high durability, FLORA LED UV inks | ||
| Color | 6 Colors： C+M+Y+K+W+V, C+M+Y+K+CM+LM | ||
| Cartidge | 2.5L | ||
| RIP software | Photoprint Flora Edition 12, Caldera, Onyx for option | ||
| Color control | International standard ICC color control, curve and density adjustable | ||
| File format | Tiff, Jepg, Postscript, EPS, Pdf，etc. | ||
| Media system | |||
| Media loading and moving system | Vinyl, pet, film, blockout, backlit, synthetic paper, banner, etc. | ||
| Easy to load and unload materials, suitable for various materials | |||
| Matrial specification | The maximum width is 330cm, the diameter is 32cm and the weight is up to 100kg. | ||
| Data transmission | |||
| Data interface | High speed USB transmission | ||
| Machine size | |||
| Machine | 610*200*210cm | ||
| Packing box | 680x250x230cm | ||
| Machine weight | |||
| 1800KG | |||
| Operating environment | |||
| Temperature | 20-30℃ | ||
| Relative humidity | 35 – 65%, non-condensing. | ||
| Power requirements | |||
| Maximum power | 8500W | ||
| Access parameter | Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 50A | ||
