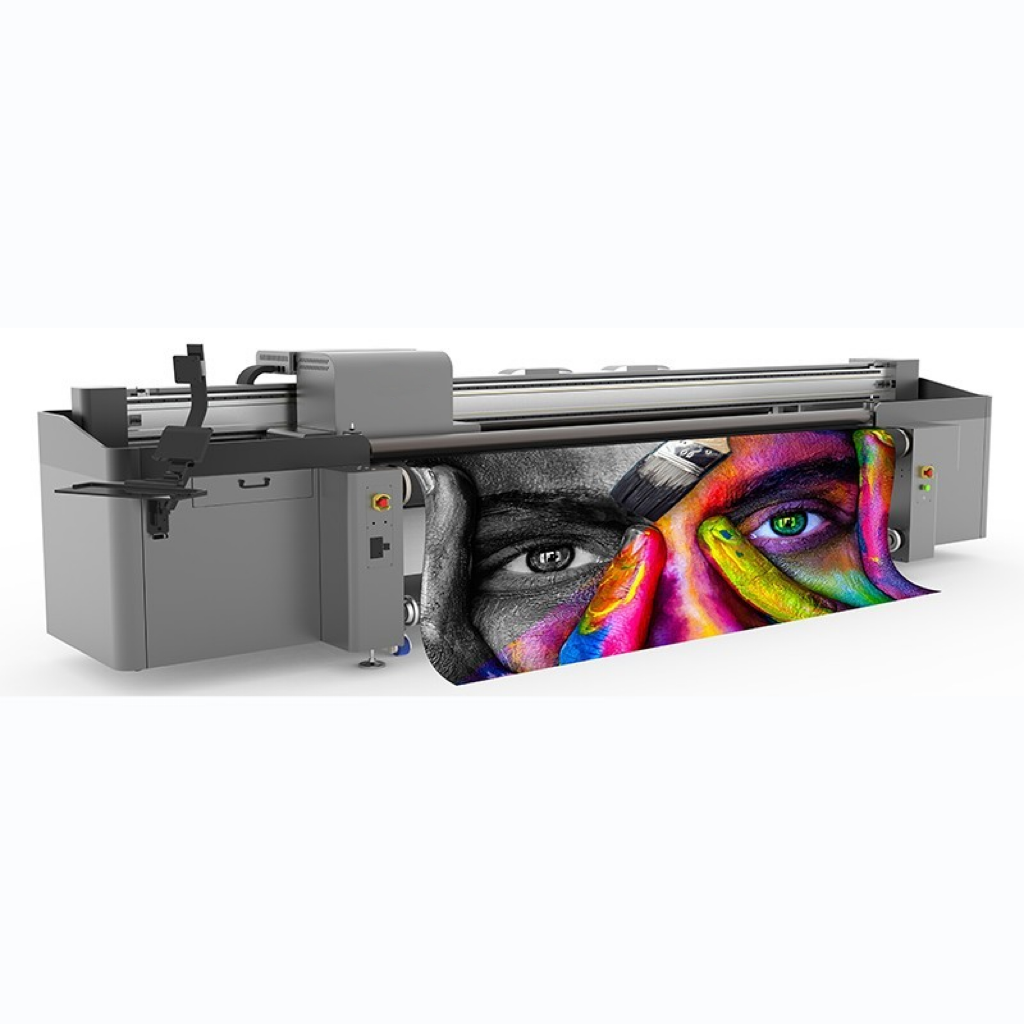

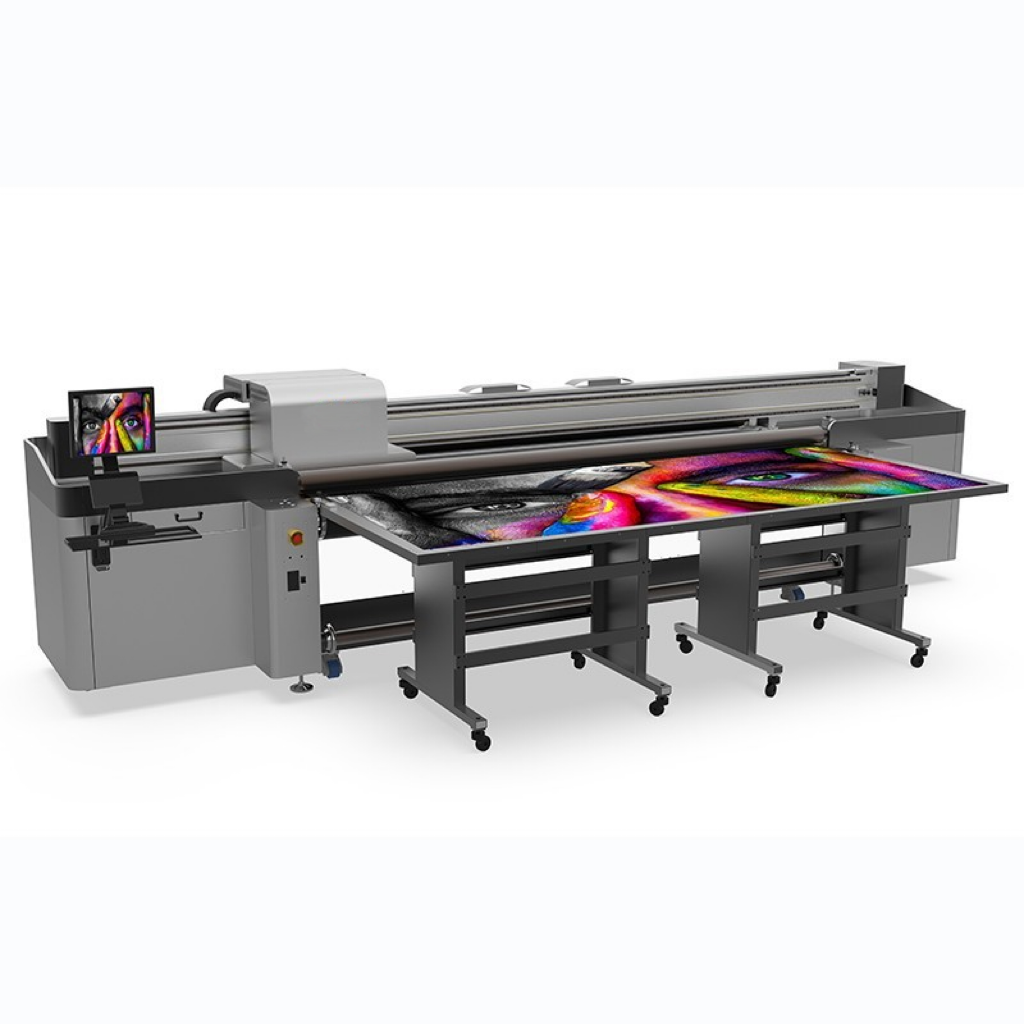

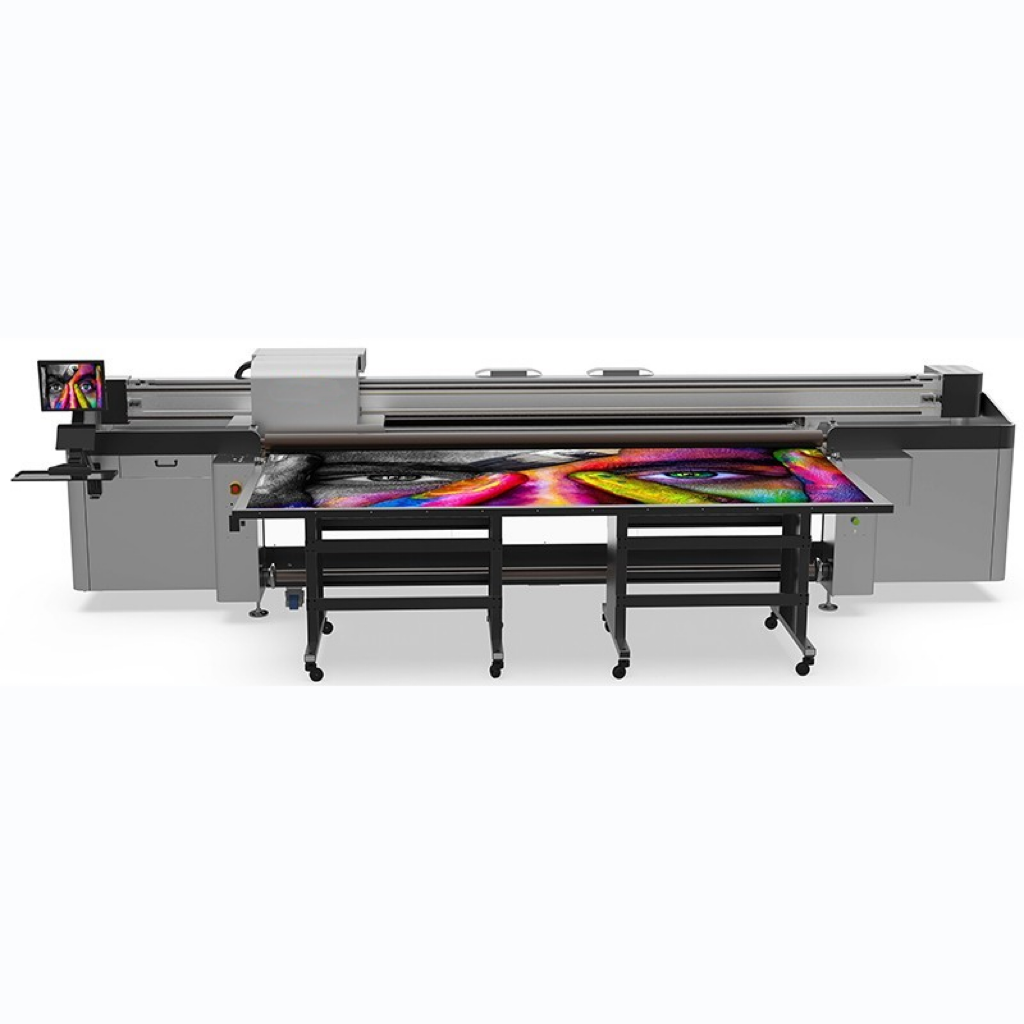

AMO-Q33
AMO large format hybrid printer
It adopts grayscale printhead and supports 4-level gray printing
Large format printing size up to 320cm
Bi-media handle system, supporting both roll-to-roll printing and rigid board printing
A variety of color configurations, standard 4 colors, white and varnish for option
Double negative pressure system, anti-collision protection, suction platform partition controllable, anti-static device, auto media deviation sensor, auto medial guide bar, etc
Wide application solutions for wallpaper, light box , car sticker, acrylic, template, glass, cardboard, etc
| Data sheet | ||
| Printhead | 4-15 KM1024I 6pl grayscale printhead | |
| Printing speed | Two-row head | Three-row head |
| Express mode | 100 ㎡/h | 136 ㎡/h |
| Production mode | 73 ㎡/h | 103 ㎡/h |
| Backlit mode | 54 ㎡/h | 68 ㎡/h |
| Resolution | Up to 726x1440dpi | |
| Inkjet technology | Piezoelectric nozzle inkjet, grayscale printing technology | |
| Ink type | LED UV ink environment friendly, excellent colors, high durability, FLORA LED UV inks | |
| Color | 4, 6, 8 colors：C+M+Y+K，C+M+Y+K+W+V，C+M+Y+K+Lc+Lm | |
| Cartride capacity | 2.5 L/color | |
| RIP software | Photoprint 12, Caldera 11 & Onyx 12(Optional） | |
| Color control | International standard ICC color control, curve and density adjustable | |
| File format | TIFF, JPEG, EPS, PDF, etc | |
| Media system | ||
| Material handling | Vacuum adsorption, and flat belt conveying with outreach tables to extend printing size | |
| Sheet specification | 330x250cm | |
| Media roller specification | The maximum width is 330cm. The diameter is 40cm and the weight is 100kg. | |
| Medium thickness | 51mm | |
| Data transmission | ||
| Data interface | USB 3.0 | |
| LED UV lamp system | ||
| LED UV cold light source, energy saving and environment friendly , low power consumption, long working life. Each LED UV lamp energy is adjustable, suitable for different material. | ||
| Machine size | ||
| Machine | 600x155x160cm | |
| Packing box | 586x187x206cm | |
| Machine weight | ||
| 3000KG | ||
| Operating environment | ||
| Temperature | 20-30℃ | |
| Relative humidity | 35 – 65%, non-condensing. For mixed materials, the relative humidity is recommended to be higher than 40% to effectively control static electricity. | |
| Power requirements | ||
| Maximum power | 8000W | |
| Access parameter | Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 320A x 2 | |
