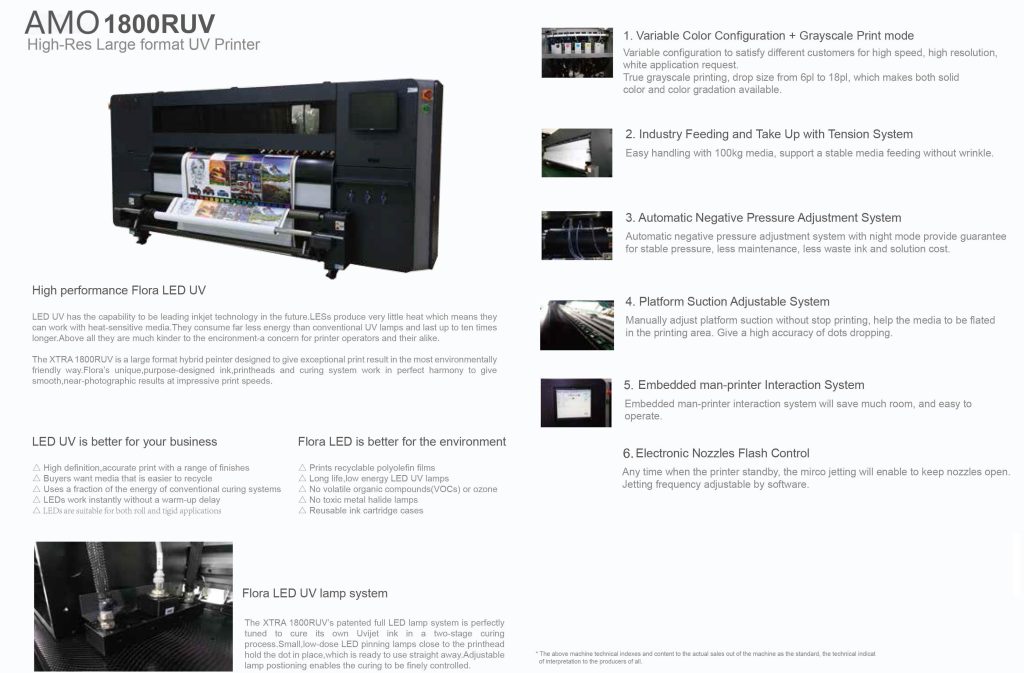

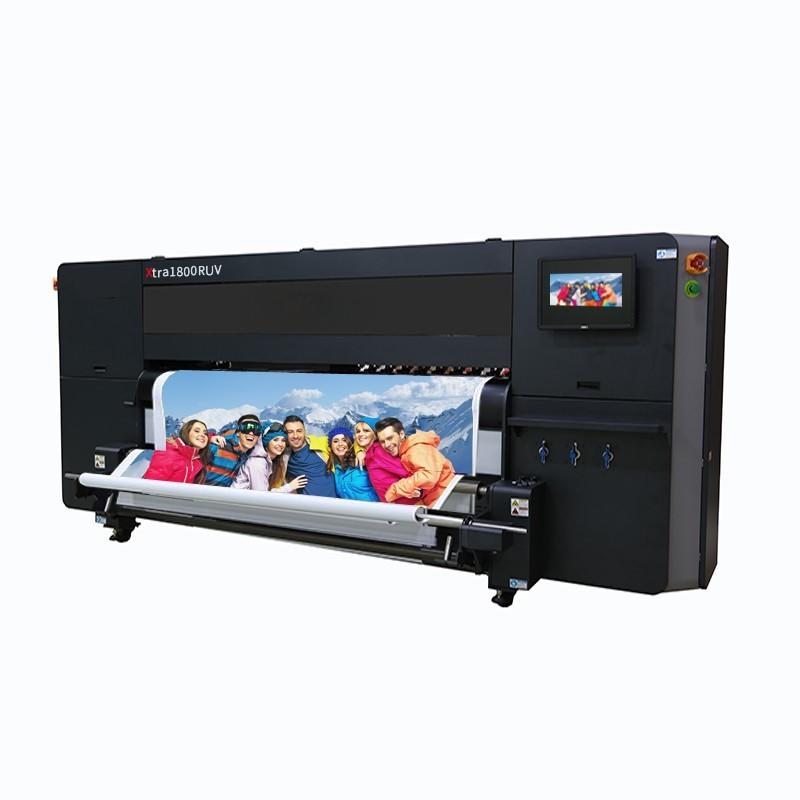

AMO-XTRA1800RUV
AMO pinch roller UV printer
Grayscale inkjet technology, printhead variable drop size from 6 to 18pl
Excellent coverage with standard CMYK vivid and bright colors
Plenty of color scheme including white and varnish, light magenta and light cyan
Upgraded feed-in and take-up system elimiate media wave and winding problem
Excellent stepping motor and movement module supoort high presicion printing
| Data sheet | |||
| Pinthead | 6-12 grayscale industrial inkjet head | ||
| Inkjet speed | One-row head | Two-row head | |
| 4 pass | 42 ㎡/h | 85 ㎡/h | |
| 6 pass | 31 ㎡/h | 62 ㎡/h | |
| 8 pass | 22 ㎡/h | 45 ㎡/h | |
| 12 pass | 15 ㎡/h | 30 ㎡/h | |
| Resolution | Up to1452*1440dpi | ||
| Inkjet technology | On-demand piezoelectricity inkjet mode, supporting gray level printing | ||
| Ink type | LED UV inks environment friendly, excellent colors and high durability, FLORA LED UV ink | ||
| Color | 6 colors： C+M+Y+K+W+V, C+M+Y+K+LC+LM 4 colors: C+M+Y+K | ||
Cartridge capacity | 2.5L | ||
| RIP software | Photoprint Flora Edition 12, Caldera, Onyx for option | ||
| Color control | International standard ICC color control, curve and density adjustable | ||
| File format | Tiff, Jepg, Postscript, EPS, Pdf，etc. | ||
| Media system | |||
| Printing media | PVC, Vinly film, car sticker, light box film and coiled materials, etc. Easy to load and unload materials, suitable for various media | ||
| Media specification | The maximum width is 185cm. The roller diameter is up to 32cm and the weight is up to 100kg. | ||
| Data transmission | |||
| Data interface | High speed USB transmission | ||
| Machine size | |||
| Machine | 358*100*162cm | ||
| Packing box | 390*115*190cm | ||
| Machine weight | |||
| 850KG | |||
| Operating environment | |||
| Temperature | 20-30℃ | ||
| Relative humidity | 35 – 65%, non-condensing. | ||
| Power requirements | |||
| Maximum power | 2500W | ||
| Access parameter | Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 12A | ||
